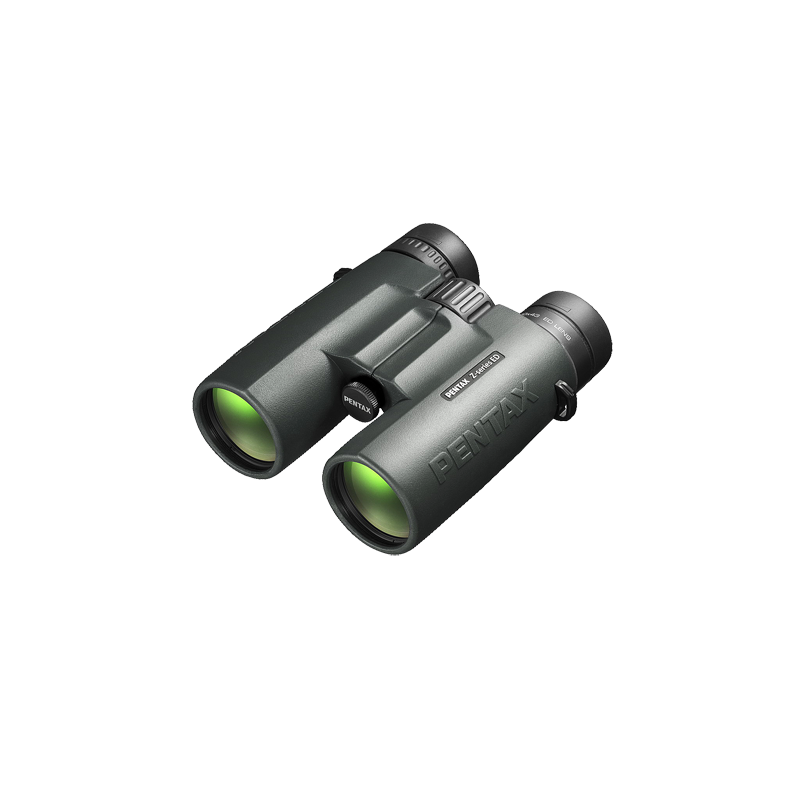

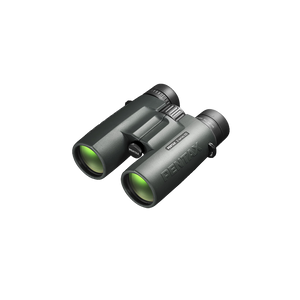

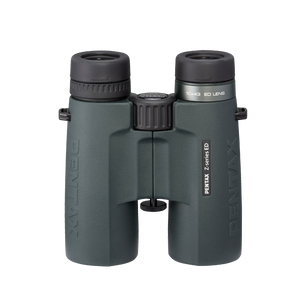

Pentax ZD 10X43 ED Binoculars
by
Pentax
SKU: P-62702
-
Discover the Pentax ZD 10×43 ED Binoculars
Introducing these high-end binoculars that combine performance, unique design, durability, and finesse.
Optics and Fully Multi-Coated Lenses
The lenses of the Pentax ZD 10×43 ED feature fully multi-coated (FMC) treatments to maximize light transmission, reduce reflections, and eliminate ghosting, delivering extremely sharp and high-contrast views.
Enhanced Light Transmission Coating
A specific optical film covers each prism and lens to improve brightness, color rendition, and contrast, ensuring remarkable clarity even in challenging conditions.
Ultra-Low Dispersion ED Glass
The use of ED (extra-low dispersion) glass minimizes chromatic aberrations for natural colors and increased resolution, all while maintaining a lightweight and compact design.
BaK4 Prisms with Dielectric Coating
BaK4 prisms ensure a circular exit pupil without vignetting, while the dielectric coating enhances brightness and color fidelity.
Compact and Reliable Roof Prism Design
The roof prism structure offers great compactness without compromising optical quality: enhanced reliability and easy handling, especially when wearing gloves.
Internal Focusing
Internal focusing preserves the instrument’s complete waterproofing, improves stability, and reduces bulk, making it perfect for intensive outdoor use.
Waterproofing and Nitrogen Purging
These binoculars are nitrogen-purged and JIS Class 6 certified, ensuring fog-free viewing down to approximately 1 meter deep, even in humid environments.
Nanotechnology Hydrophobic Coating
Each front lens is equipped with a hydrophobic coating that repels water, dust, and dirt—even in rain or snow—to preserve visual quality.
Magnesium Chassis, Unique Design
The magnesium alloy body combines lightness and strength, while a green or black rubberized coating enhances grip and shock resistance, all with a distinctive visual design.
Generous Eye Relief
With 17 mm of eye relief, these binoculars are particularly suitable for eyeglass wearers, providing comfortable, prolonged observation without fatigue.
Minimum Close Focus Distance of 2 m
A short close focus distance of only 2 meters allows you to observe nearby subjects with exceptional sharpness.
Wide Field of View
The field of view spans 6°, or about 105 m at 1,000 m, ideal for nature observation, birdwatching, and group viewing.
10× Magnification / 43 mm Objective Diameter
A powerful 10× magnification combined with a 43 mm objective lens provides an excellent balance between magnification, brightness, and a weight of only 730 g.
Twilight Factor and Brightness
With a relative brightness index of approximately 18.5 and a twilight factor of 20.7, these binoculars excel in low-light conditions.
Four-Position Twist-Up Eyecups
The notched twist-up eyecups offer four positions to precisely match eye relief and provide personalized comfort.
Lockable Diopter Adjustment
The diopter adjustment is lockable to prevent any accidental movement during use.
Tripod Adaptation Possible
These binoculars can be mounted on a tripod thanks to the integrated adapter — ideal for long-duration observation or astrophotography.
Long-Term Warranty
Pentax offers a 25-year warranty (or more depending on the market), demonstrating confidence in the product's durability.
Key Features Summary
Premium optics, original and elegant design, lightweight, waterproofing, shock resistance, user comfort, twilight performance, and wide field of view make these binoculars an exceptional choice. Pentax ZD 10×43 ED binoculars, ED 10×43 binoculars, roof prism binoculars, nitrogen-purged waterproof binoculars, birdwatching binoculars, twilight binoculars, nature observation binoculars, premium quality binoculars, lightweight binoculars, compact binoculars.
Technical Data
Specifications Values magnification 10× objective diameter 43 mm field of view 6° (≈ 105 m @ 1,000 m) minimum focus distance 2 m exit pupil 4.3 mm eye relief 17 mm interpupillary distance 60 – 75 mm brightness index ≈ 18.5 twilight factor ≈ 20.7 lens coating fully multi-coated (FMC) objective glass ED glass prism dielectric-coated BaK4 focusing internal waterproofing JIS Class 6, nitrogen purged hydrophobic coating front lenses construction magnesium chassis, rubber eyecup type 4-position twist-up diopter adjustment lockable tripod adaptation yes weight 730 g dimensions (H×W×D) 146 × 126 × 53 mm warranty 25 years Box Contents
The ZD 10×43 ED box includes:
- Pentax ZD 10×43 ED binoculars
- 2 objective lens caps
- 2 eyecup caps
- a storage case
- a comfortable neck strap
- manual and warranty certificate (25 years)
Discover the Pentax ZD 10×43 ED Binoculars
Introducing these high-end binoculars that combine performance, unique design, durability, and finesse.
Optics and Fully Multi-Coated Lenses
The lenses of the Pentax ZD 10×43 ED feature fully multi-coated (FMC) treatments to maximize light transmission, reduce reflections, and eliminate ghosting, delivering extremely sharp and high-contrast views.
Enhanced Light Transmission Coating
A specific optical film covers each prism and lens to improve brightness, color rendition, and contrast, ensuring remarkable clarity even in challenging conditions.
Ultra-Low Dispersion ED Glass
The use of ED (extra-low dispersion) glass minimizes chromatic aberrations for natural colors and increased resolution, all while maintaining a lightweight and compact design.
BaK4 Prisms with Dielectric Coating
BaK4 prisms ensure a circular exit pupil without vignetting, while the dielectric coating enhances brightness and color fidelity.
Compact and Reliable Roof Prism Design
The roof prism structure offers great compactness without compromising optical quality: enhanced reliability and easy handling, especially when wearing gloves.
Internal Focusing
Internal focusing preserves the instrument’s complete waterproofing, improves stability, and reduces bulk, making it perfect for intensive outdoor use.
Waterproofing and Nitrogen Purging
These binoculars are nitrogen-purged and JIS Class 6 certified, ensuring fog-free viewing down to approximately 1 meter deep, even in humid environments.
Nanotechnology Hydrophobic Coating
Each front lens is equipped with a hydrophobic coating that repels water, dust, and dirt—even in rain or snow—to preserve visual quality.
Magnesium Chassis, Unique Design
The magnesium alloy body combines lightness and strength, while a green or black rubberized coating enhances grip and shock resistance, all with a distinctive visual design.
Generous Eye Relief
With 17 mm of eye relief, these binoculars are particularly suitable for eyeglass wearers, providing comfortable, prolonged observation without fatigue.
Minimum Close Focus Distance of 2 m
A short close focus distance of only 2 meters allows you to observe nearby subjects with exceptional sharpness.
Wide Field of View
The field of view spans 6°, or about 105 m at 1,000 m, ideal for nature observation, birdwatching, and group viewing.
10× Magnification / 43 mm Objective Diameter
A powerful 10× magnification combined with a 43 mm objective lens provides an excellent balance between magnification, brightness, and a weight of only 730 g.
Twilight Factor and Brightness
With a relative brightness index of approximately 18.5 and a twilight factor of 20.7, these binoculars excel in low-light conditions.
Four-Position Twist-Up Eyecups
The notched twist-up eyecups offer four positions to precisely match eye relief and provide personalized comfort.
Lockable Diopter Adjustment
The diopter adjustment is lockable to prevent any accidental movement during use.
Tripod Adaptation Possible
These binoculars can be mounted on a tripod thanks to the integrated adapter — ideal for long-duration observation or astrophotography.
Long-Term Warranty
Pentax offers a 25-year warranty (or more depending on the market), demonstrating confidence in the product's durability.
Key Features Summary
Premium optics, original and elegant design, lightweight, waterproofing, shock resistance, user comfort, twilight performance, and wide field of view make these binoculars an exceptional choice. Pentax ZD 10×43 ED binoculars, ED 10×43 binoculars, roof prism binoculars, nitrogen-purged waterproof binoculars, birdwatching binoculars, twilight binoculars, nature observation binoculars, premium quality binoculars, lightweight binoculars, compact binoculars.
Technical Data
| Specifications | Values |
|---|---|
| magnification | 10× |
| objective diameter | 43 mm |
| field of view | 6° (≈ 105 m @ 1,000 m) |
| minimum focus distance | 2 m |
| exit pupil | 4.3 mm |
| eye relief | 17 mm |
| interpupillary distance | 60 – 75 mm |
| brightness index | ≈ 18.5 |
| twilight factor | ≈ 20.7 |
| lens coating | fully multi-coated (FMC) |
| objective glass | ED glass |
| prism | dielectric-coated BaK4 |
| focusing | internal |
| waterproofing | JIS Class 6, nitrogen purged |
| hydrophobic coating | front lenses |
| construction | magnesium chassis, rubber |
| eyecup type | 4-position twist-up |
| diopter adjustment | lockable |
| tripod adaptation | yes |
| weight | 730 g |
| dimensions (H×W×D) | 146 × 126 × 53 mm |
| warranty | 25 years |
Box Contents
The ZD 10×43 ED box includes:
- Pentax ZD 10×43 ED binoculars
- 2 objective lens caps
- 2 eyecup caps
- a storage case
- a comfortable neck strap
- manual and warranty certificate (25 years)
