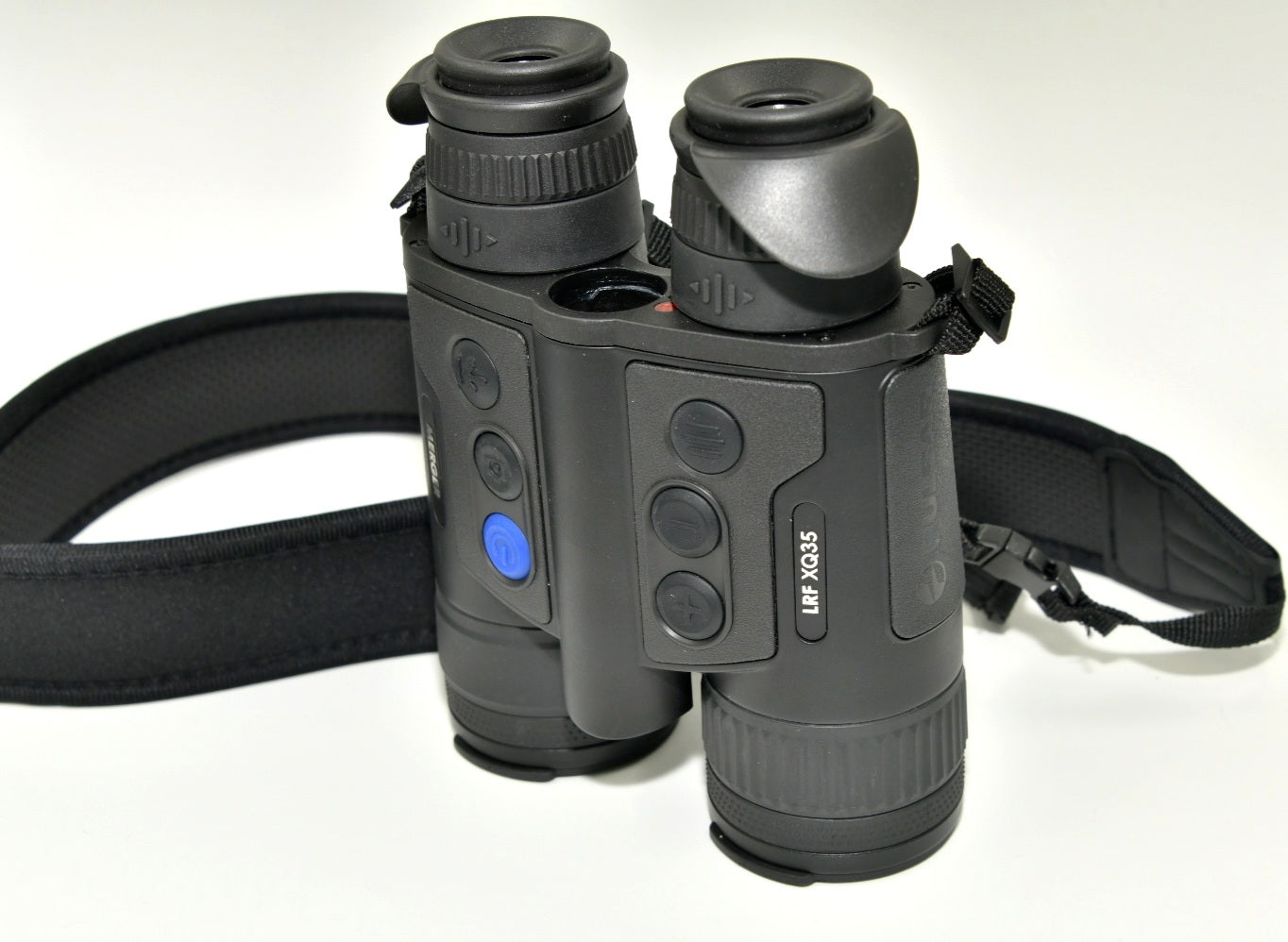

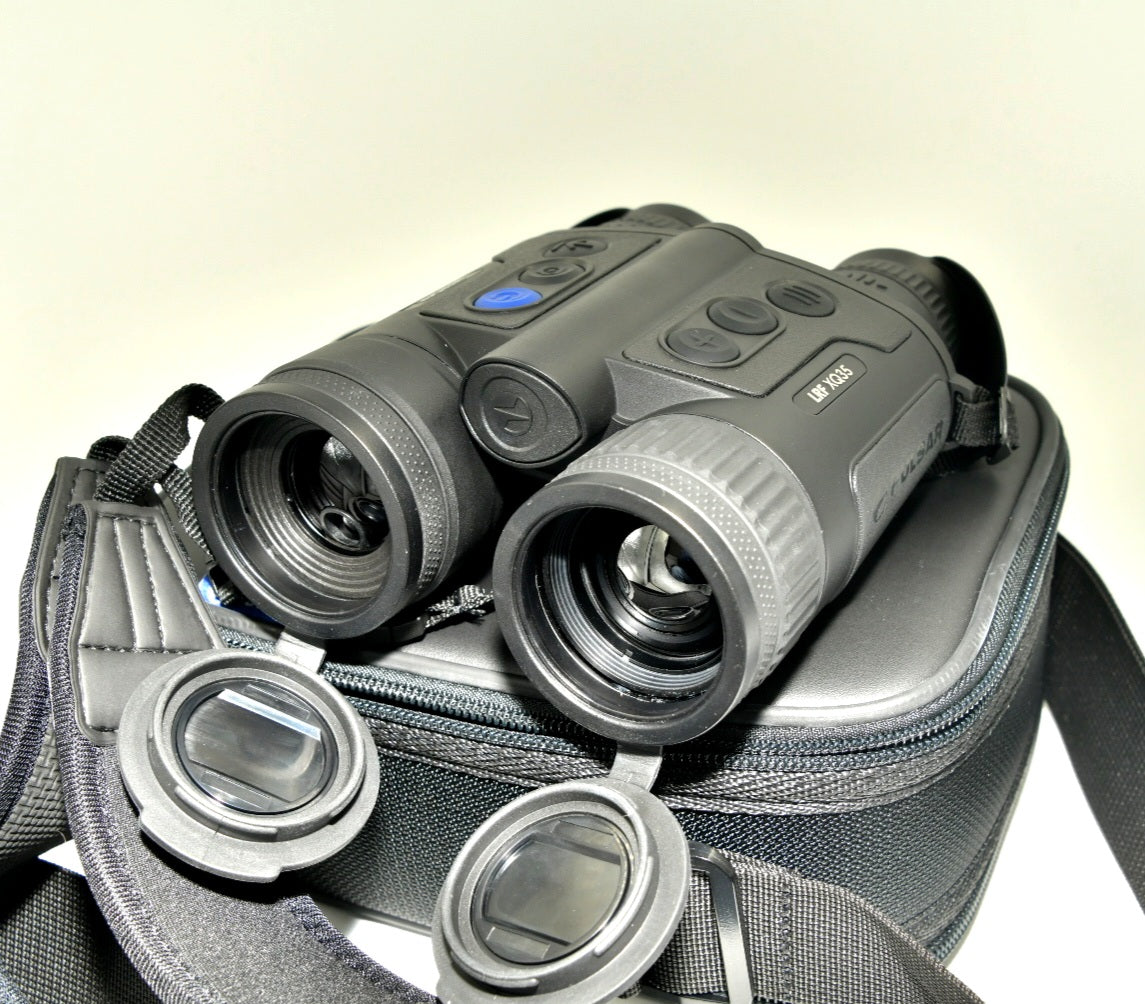

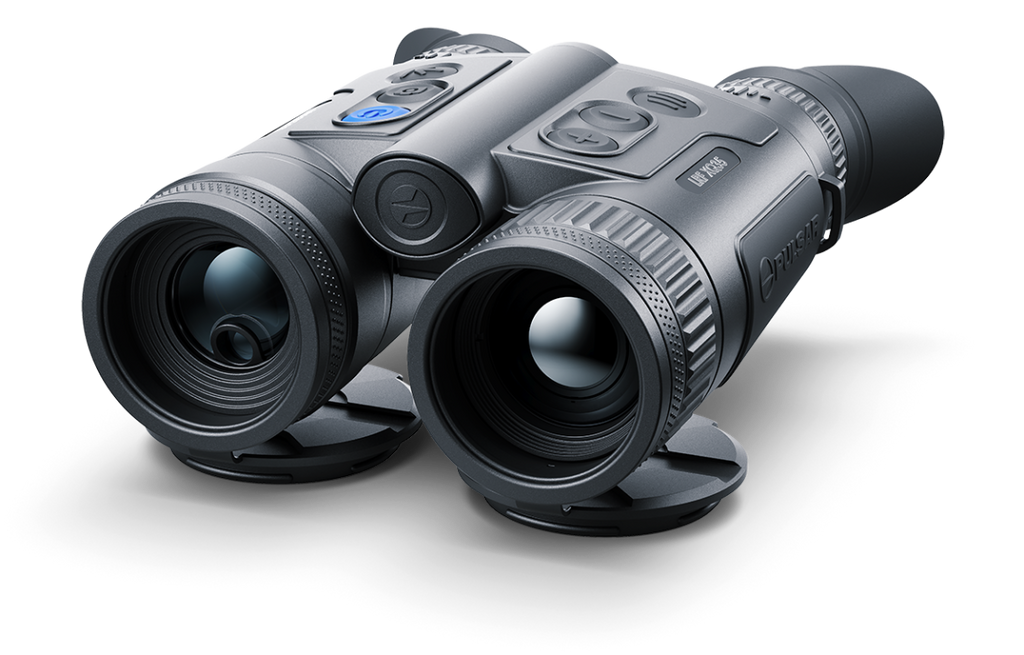

Merger LRF XQ35 Thermal Imaging Binoculars - PULSAR
Description:

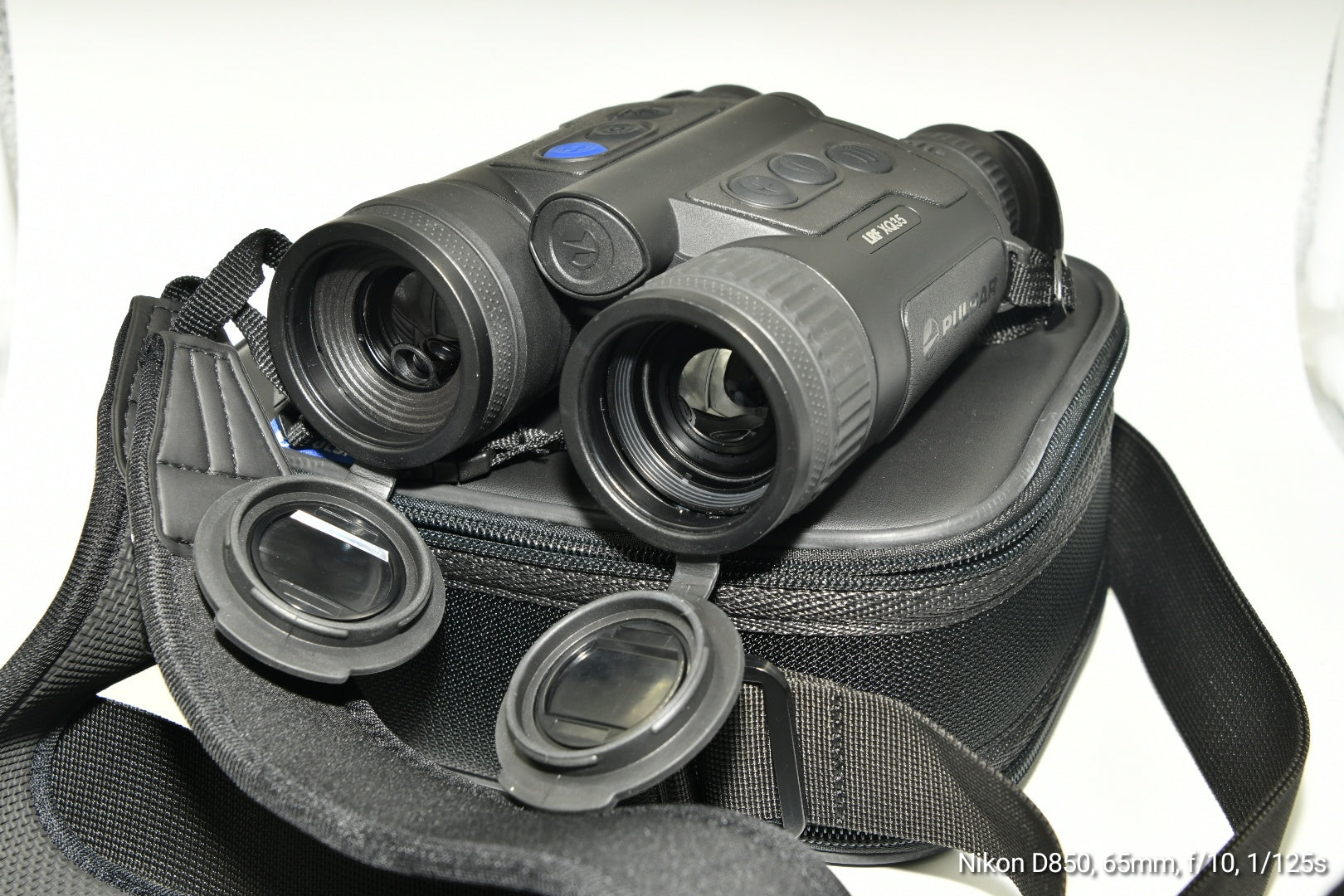

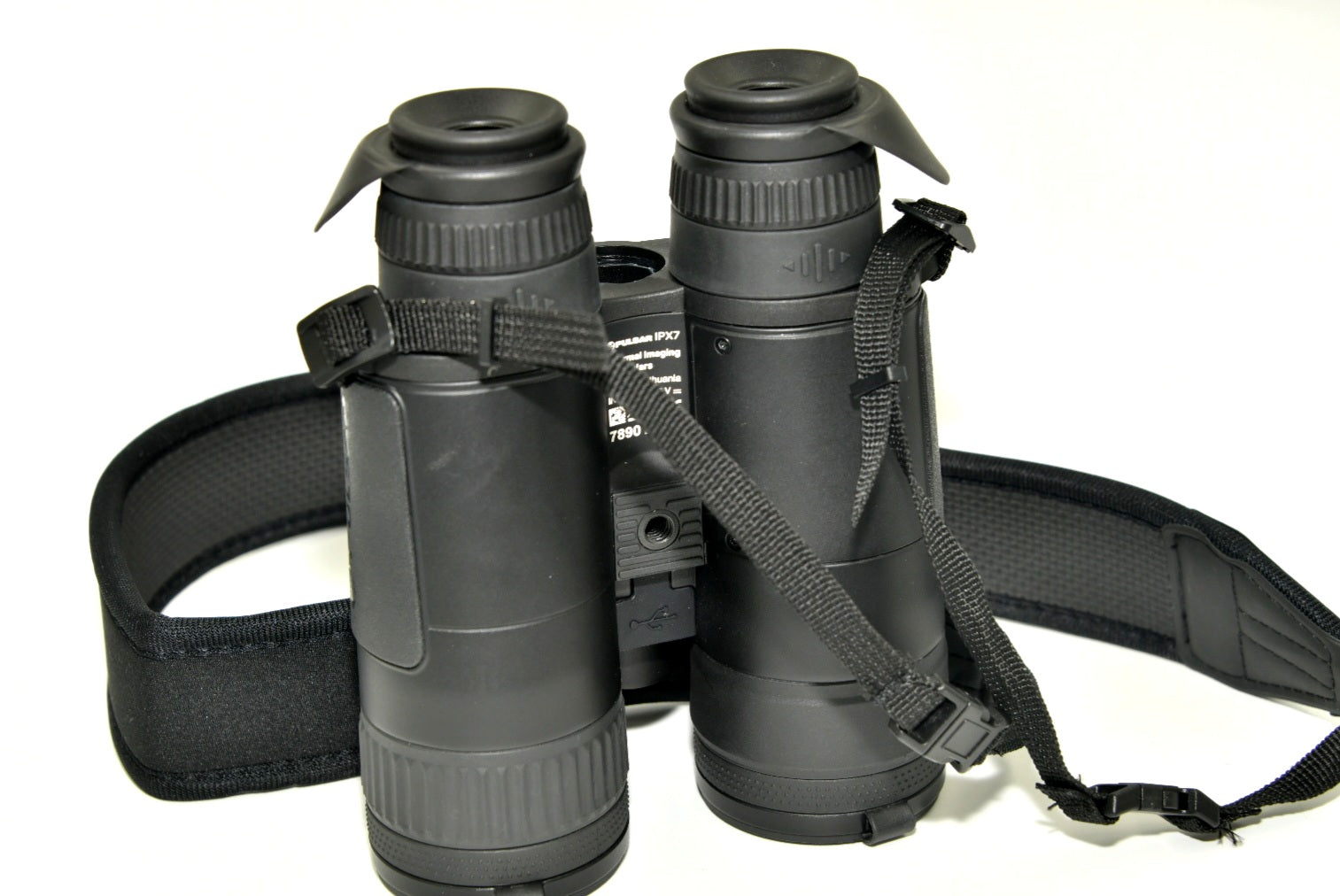

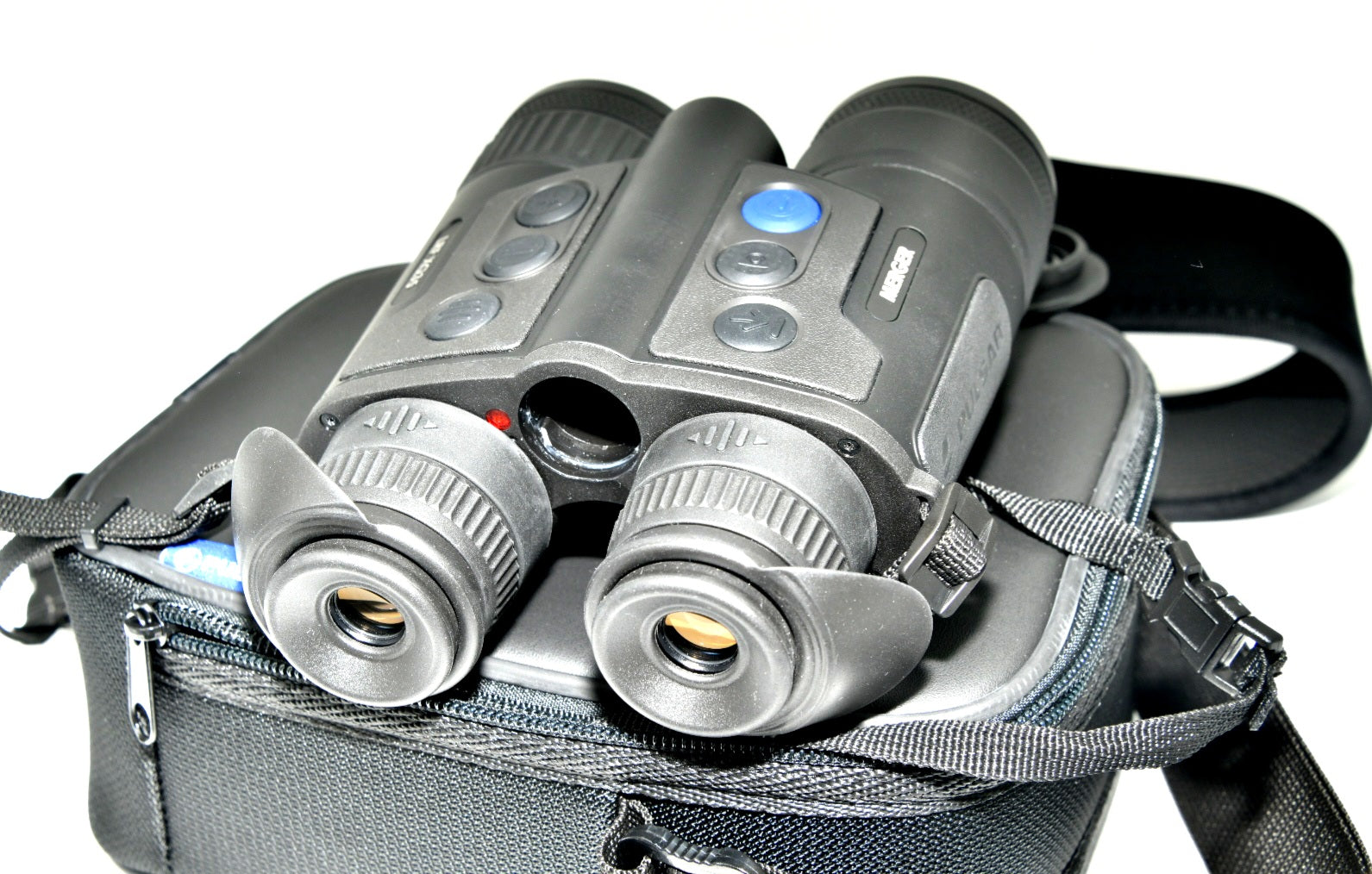

The Merger LRF thermal imaging binoculars are designed in the form of classic daytime binoculars and provide comfortable observation with both eyes. They are engineered for use at night or during the day in adverse weather conditions (fog, smog, rain) to see through obstacles obscuring targets (branches, tall grass, dense brush, etc.). Their advanced thermal vision technology enables detection of heat emitted by objects, providing effective detection capability even in complete darkness.
Specifications:
| Specification | Value |
|---|---|
| Image sensor | 384x288 pix. @ 17 µm (NETD < 25 mK) |
Key Features:
- High thermal resolution: With a resolution of 384x288 pixels and a 17 µm pixel pitch, these binoculars deliver crisp, detailed thermal images, allowing for precise detection of objects even at long distances.
- Powerful zoom: Featuring a 3x-12x zoom, these binoculars offer exceptional versatility to adapt to different observation scenarios, whether spotting distant targets or for closer viewing.
- Wide field of view: With a horizontal field of view from 10.7° to 18.7°, these binoculars provide a panoramic view, ideal for extensive monitoring of the area of interest.
- LRF function (integrated laser rangefinder): The binoculars are equipped with a laser rangefinder that enables precise distance measurement up to 1,350 meters, offering an additional feature for hunting, nature observation, and security activities.
- Wi-Fi connectivity and app control: Thanks to their Wi-Fi connectivity and the Stream Vision 2 app, these binoculars allow real-time image viewing and control from a smartphone or tablet, providing an enhanced user experience and greater operational flexibility.
- Ruggedness and reliability: With an IPX7 rating, these binoculars are waterproof and weather-resistant, making them suitable for use in harsh and changing environments.
- Tripod compatibility: The ability to mount on a tripod provides additional stability for extended observations, also allowing hands-free operation for other tasks.
Technical Specifications of the Binoculars
| Specification | Value |
|---|---|
| Image sensor | 384x288 pix. @ 17 µm (NETD < 25 mK) |
| Objective lens diameter | F35 / 1.0 |
| Zoom | 3 – 12 (x4 zoom) |
| Field of view (HxV) | 10.7×8 / 18.7x14 degrees / m at 1000 m |
| Detection distance | 1350 m |
| Sensor type | Uncooled |
| Resolution | 384 x 288 px |
| Pixel pitch (nb) | 17 µm |
| NETD | < 25 mK |
| Refresh rate | 50 Hz |

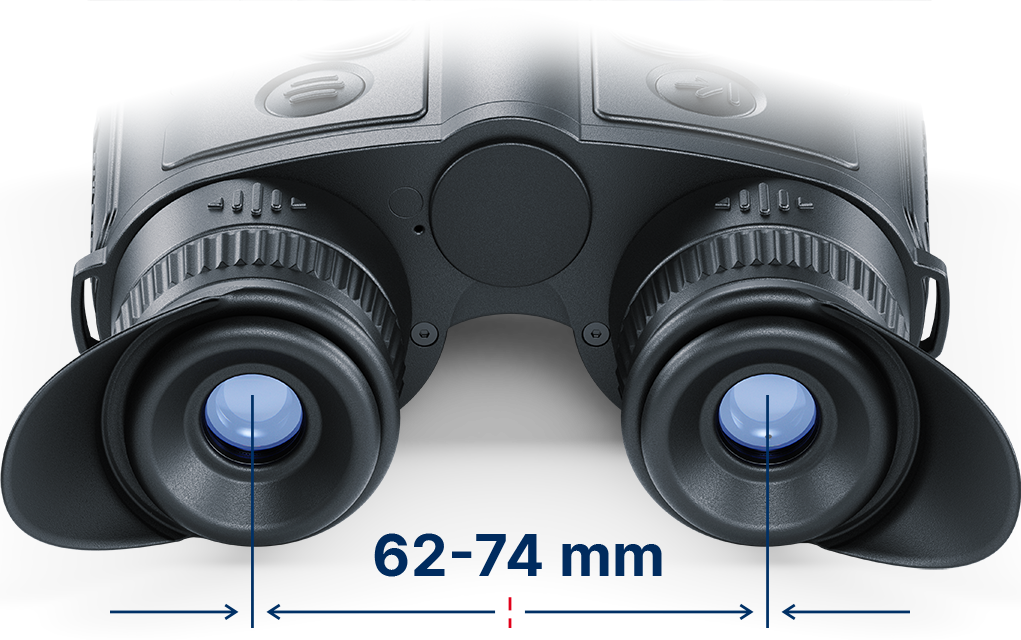

| Interpupillary adjustment | 62 - 74 mm |
| Eye relief | 15 mm |
| Screen type | AMOLED HD |
| Screen resolution | 1024 x 768 px |
| Laser equipment safety class according to IEC 60825-1: 2014 | 1 |
| IR wavelength | 905 nm |
| Max. measuring range | 1000 m |
| Measurement accuracy | ± 1 m |
| Photo resolution | 1024 x 768 px |
| Video resolution | 1024 x 768 px |
| Photo format | .jpg |
| Video format | .mp4 |
| Memory capacity | 16 Gb |
| Wireless protocol | Wi-Fi |
| Wi-Fi standard | IEEE 802.11 b/g/n/ac (WPA) |
| Wi-Fi frequency | 2.4 / 5 GHz |
| Waterproof | Yes - IPX7 |
| Operating temperature | -25° C to +50 ° C |
| Tripod connection | Yes - 1/4" |
| Control via app | Yes - Stream Vision 2 |
| Voltage | 3.7 v |

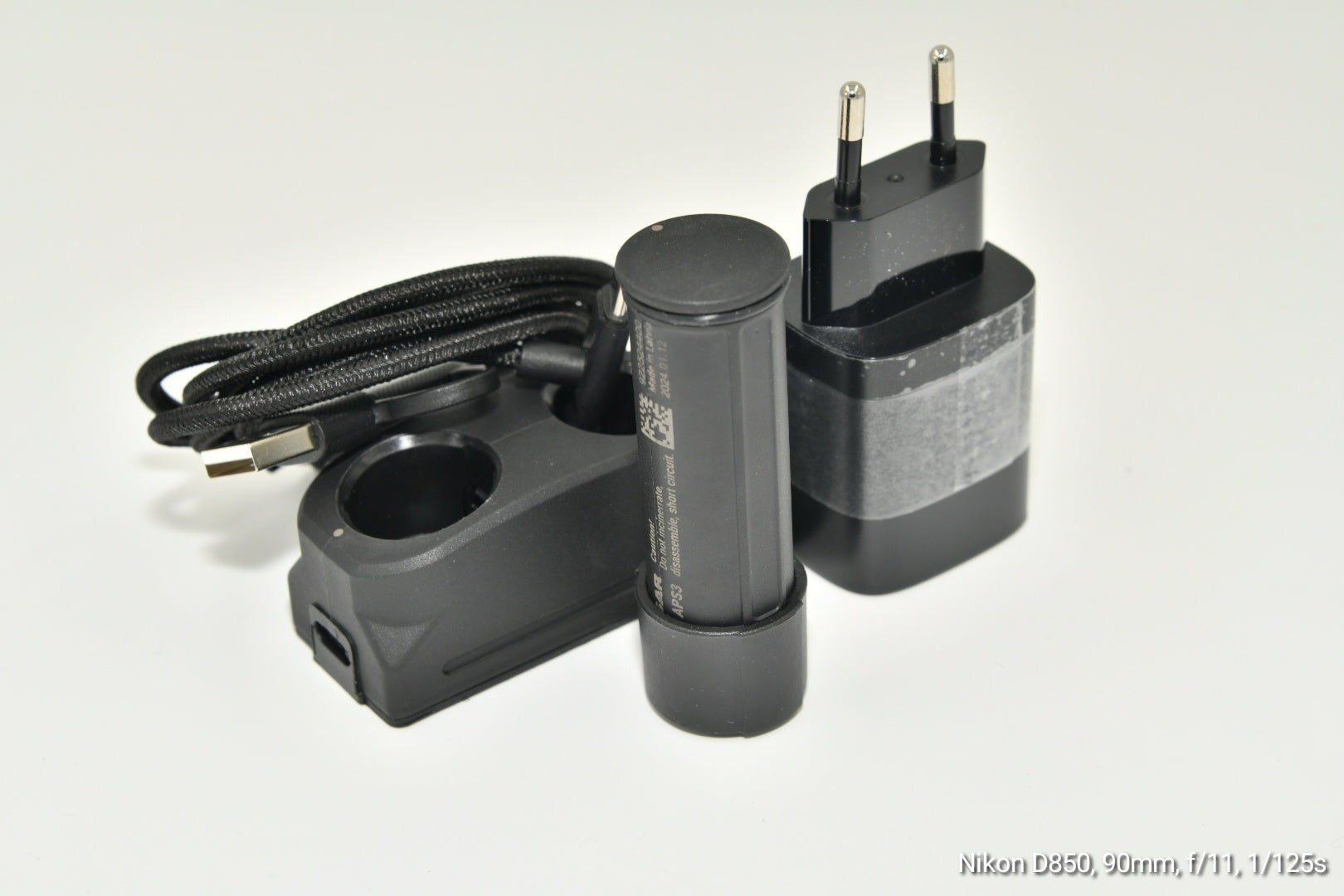

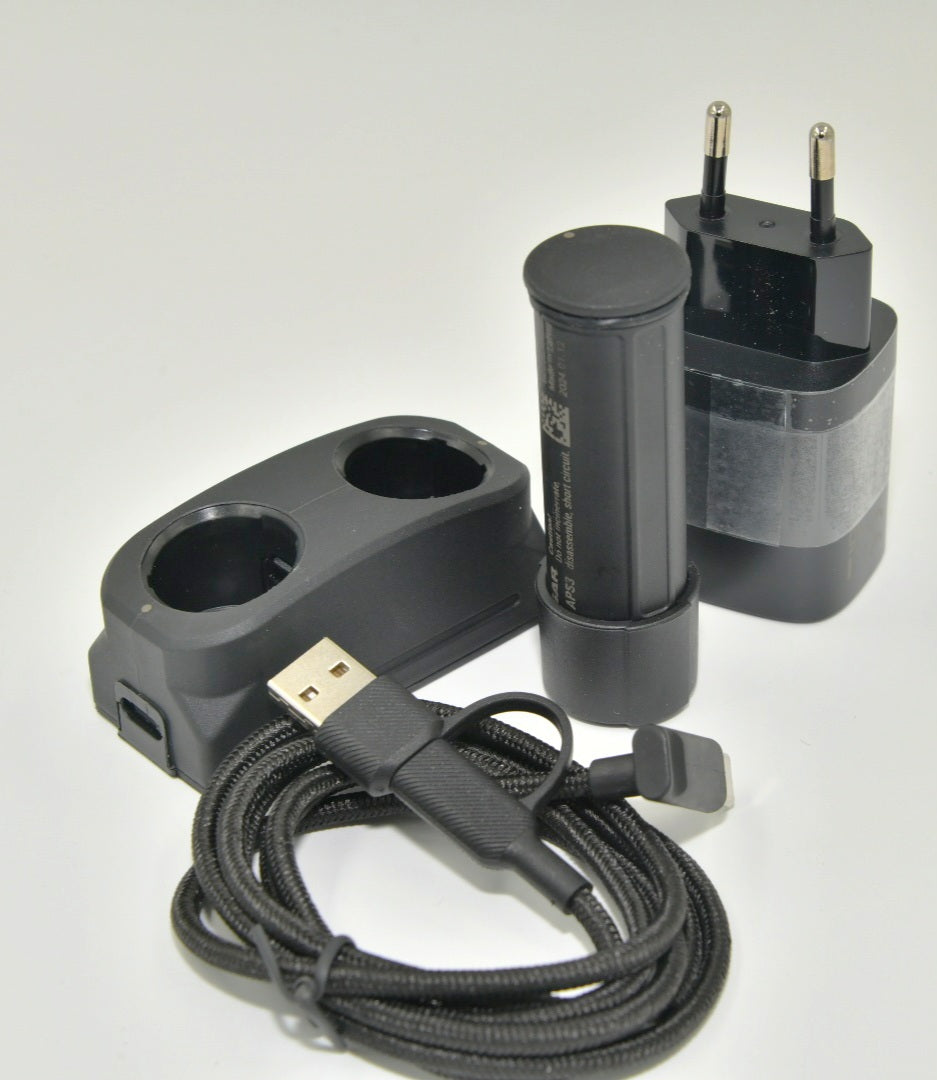

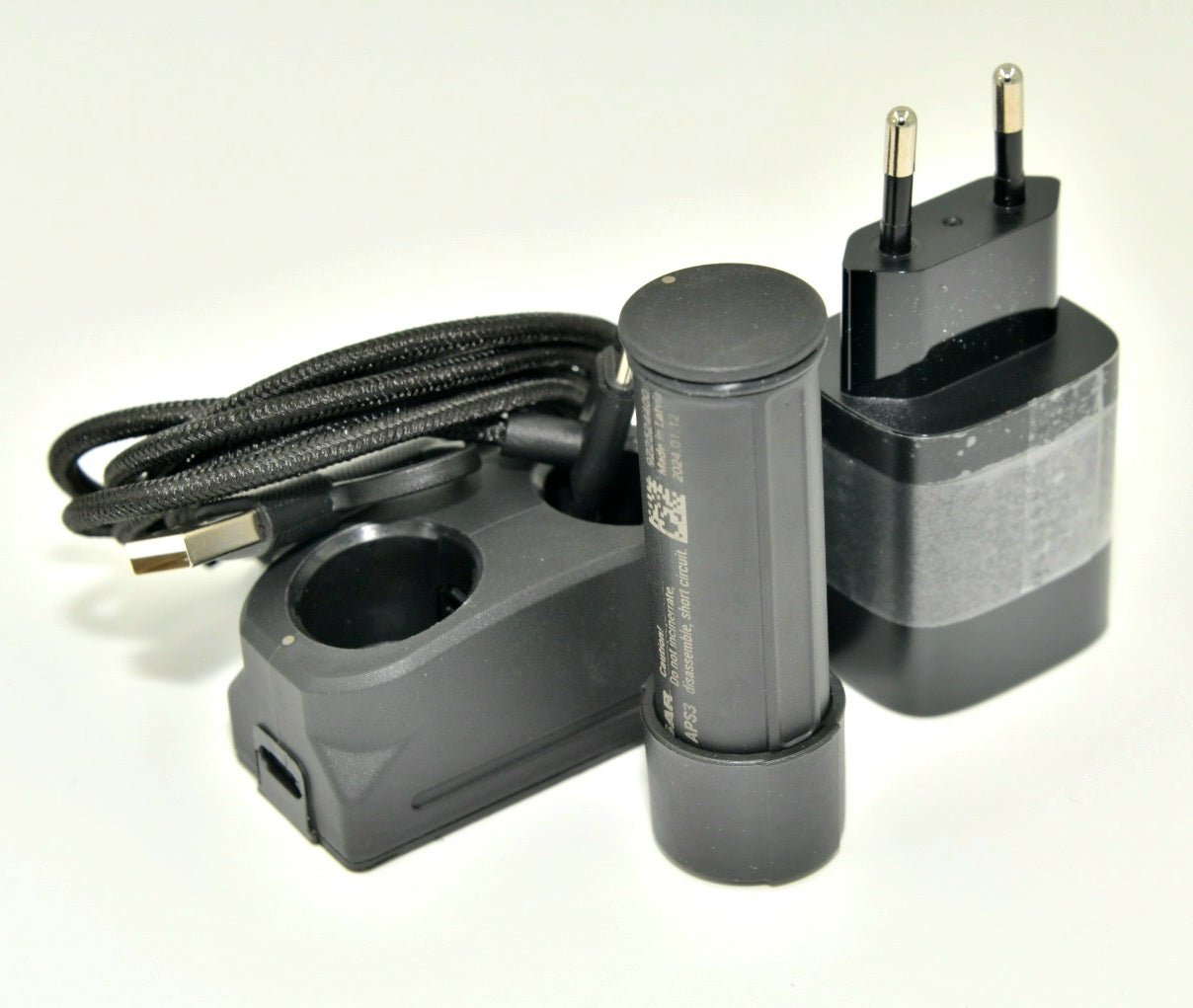

| Battery type | Dual Li-Ion Power System: 3.2 Ah removable (external) / 4 Ah (internal) |
| Battery capacity | 3200 (external) + 4000 (internal) mAh |
```
| Field of use | Hunting |
|---|---|
| Security | |
| Search and rescue | |
| Wildlife observation | |
| Long-term observation |
TYPE
| Type | Binocular |
|---|
OPTICAL SPECIFICATIONS
| Magnification from | 3 |
|---|---|
| Magnification up to | 12 |
| Eyepieces for eyeglass wearers | ✓ |
| Diopter adjustment | ✓ |
| Field of view (degrees) | 10.7 |
| Field of view (m/100m) min. | 18.7 |
| Rangefinder | ✓ |
| Detection range | 1350 m |
DISPLAY FEATURES
| 'Screen off' function | ✓ |
|---|---|
| Color palette | ✓ |
ELECTRONICS, HARDWARE, AND SOFTWARE
| Batteries | 2 APS3 B-Pack 2 |
|---|---|
| Batteries included | ✓ |
| Battery life | 11 h |
| Internal memory | 16 |
| Display type | AMOLED |
| Resolution | 1024x768 |
| Graphic file format | jpg |
| Video formats | MP4 (Codec: H.265/ H.264) |
| Interfaces | USB Type-C |
GENERAL TECHNICAL DATA
| Waterproof | ✓ |
|---|---|
| Water resistance protection level | IPX7 8 |
| Color | Black |

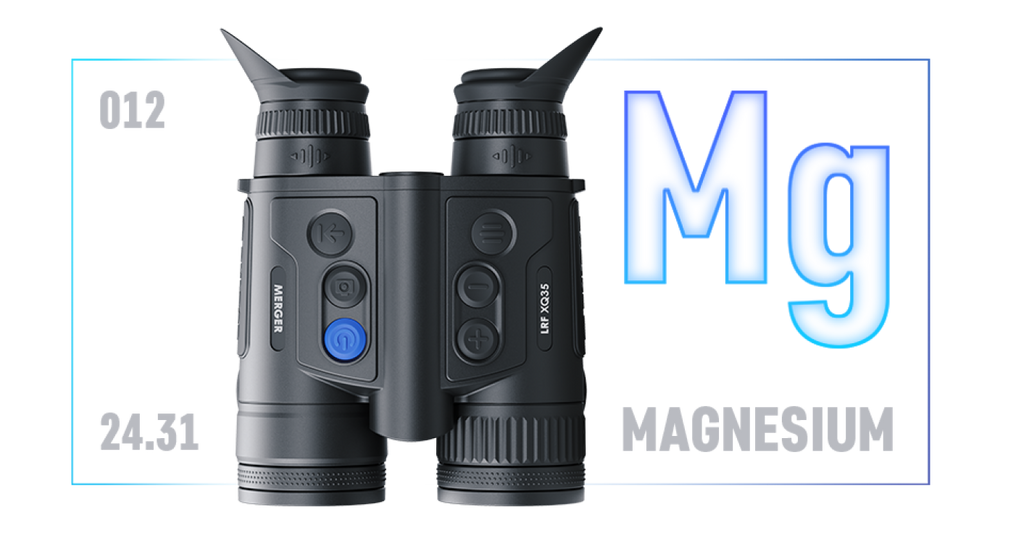

| Housing material | Magnesium |
| Calibration | |
| Minimum temperature range (°C) | -25 |
| Maximum temperature range (°C) | 50 |
DIMENSIONS & WEIGHT
| Total length | 181 mm |
|---|---|
| Total width | 133 mm |
| Total height | 68 mm |
| Net weight (without accessories) | 830 g |
Use only the recommended batteries/accumulators.

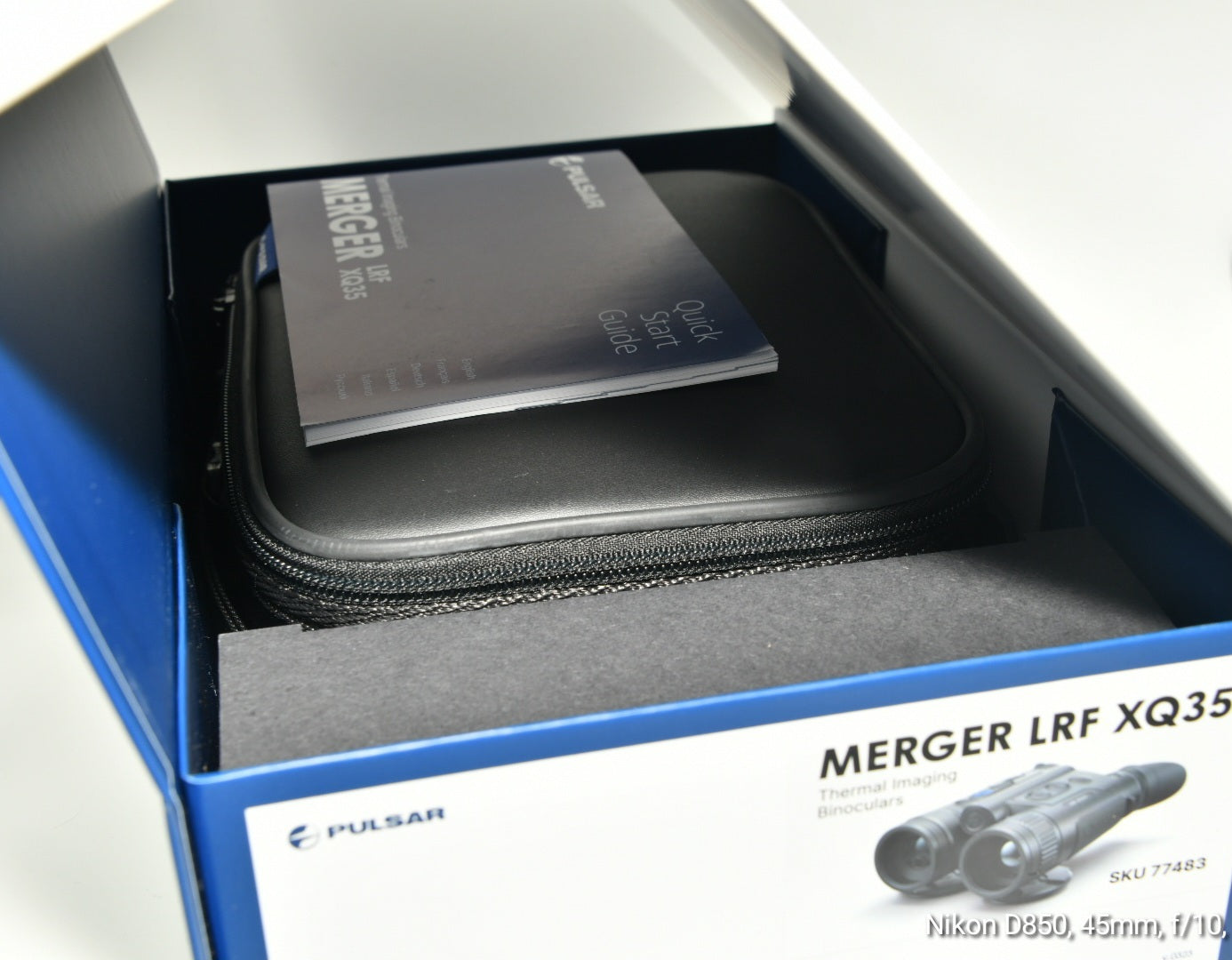

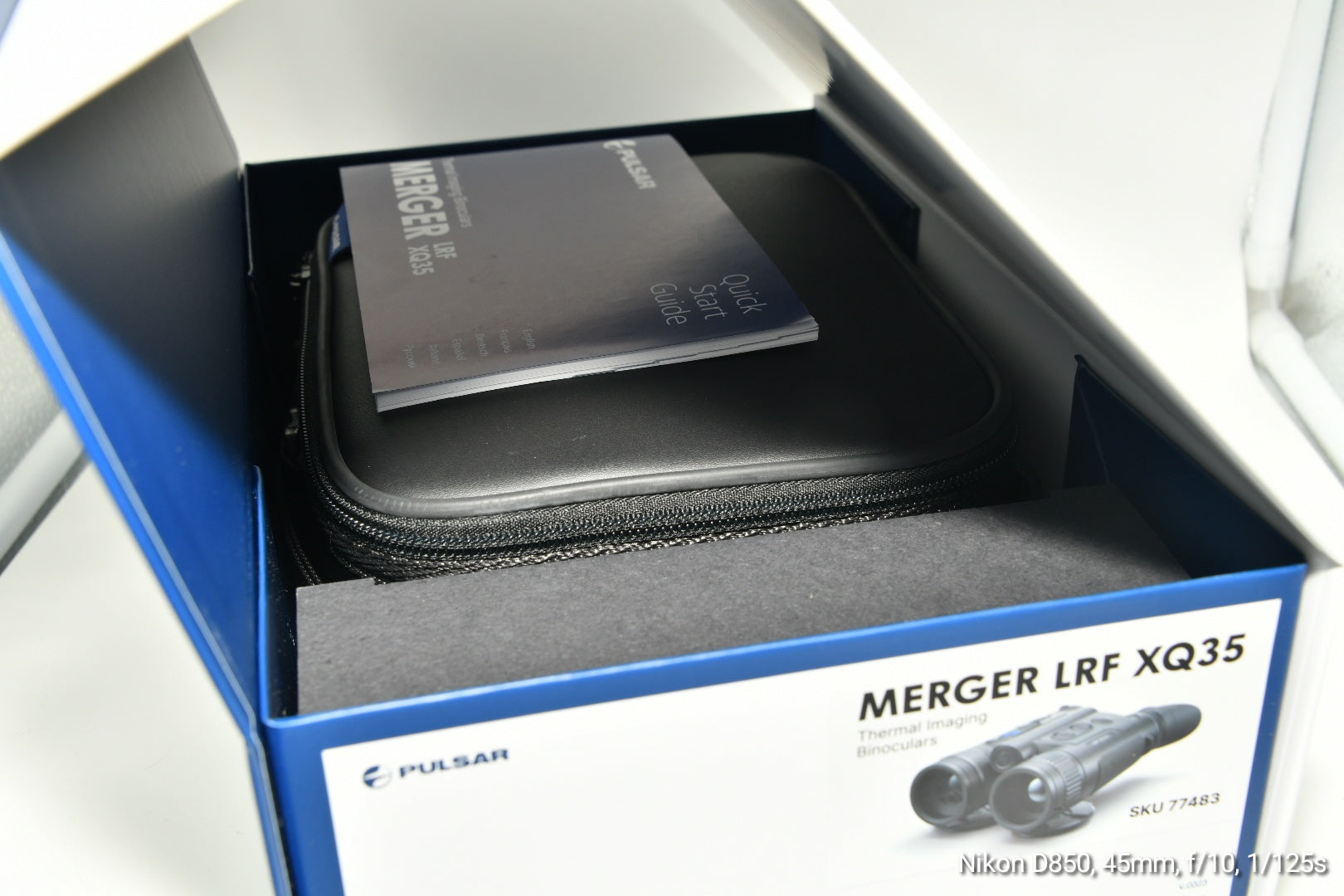

Box contents:
- Merger LRF XQ35 thermal imaging binoculars

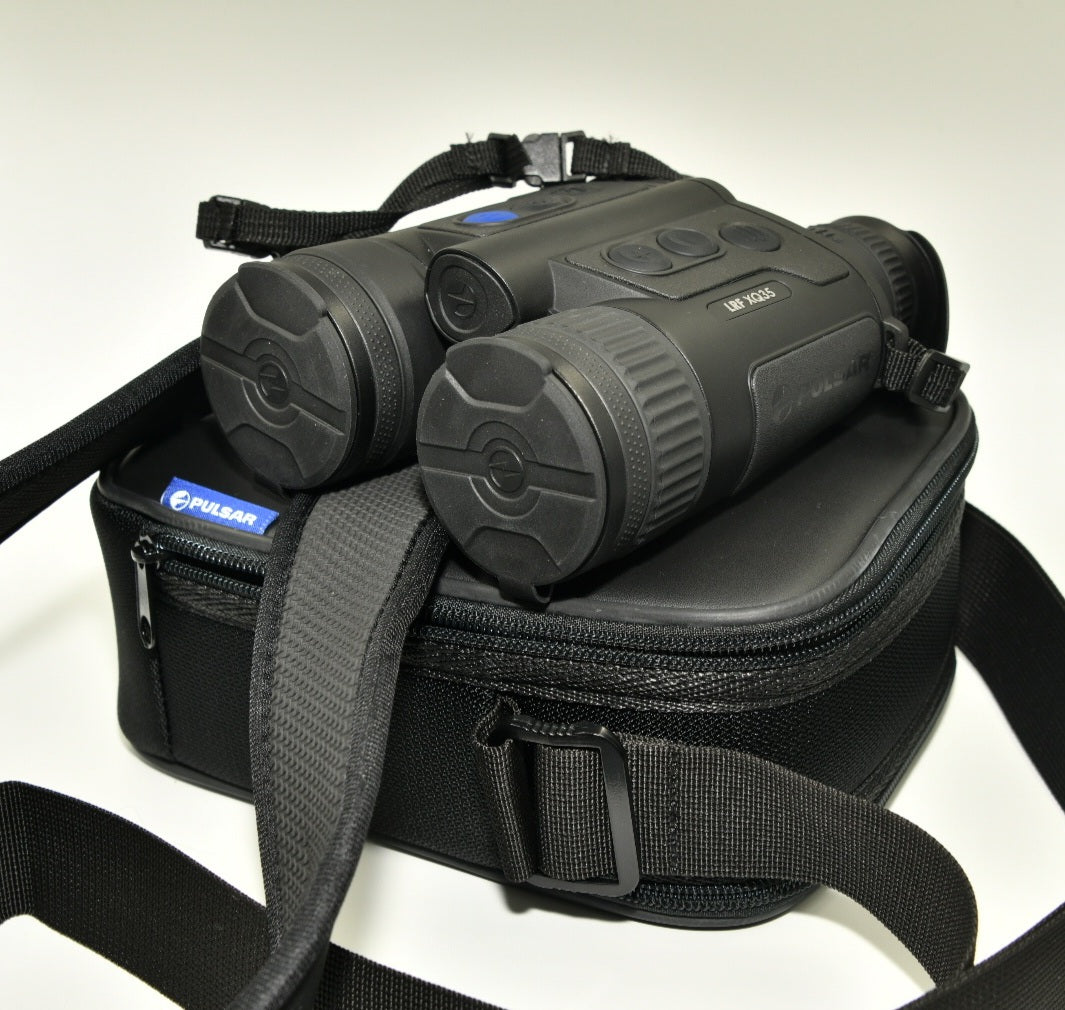

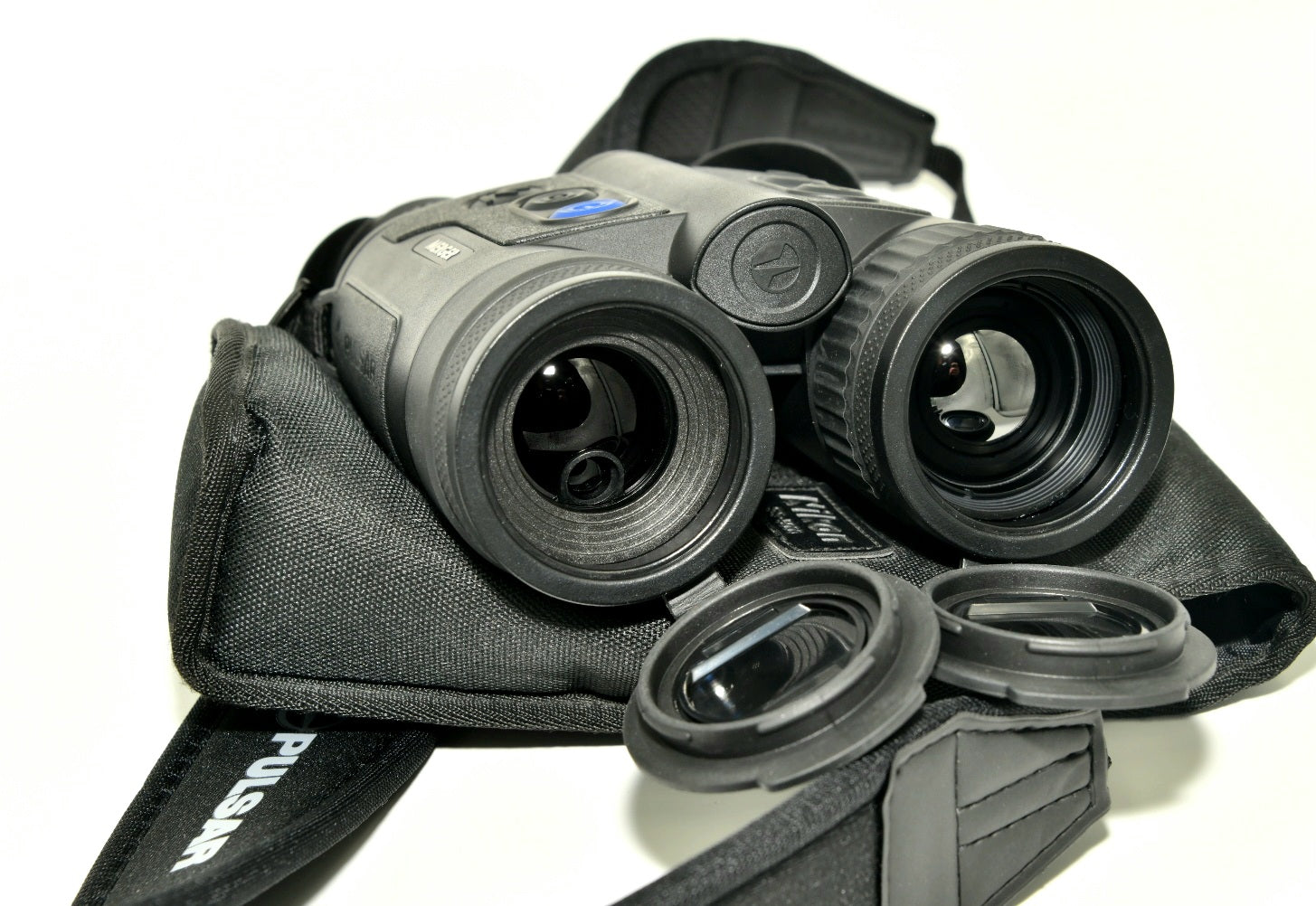

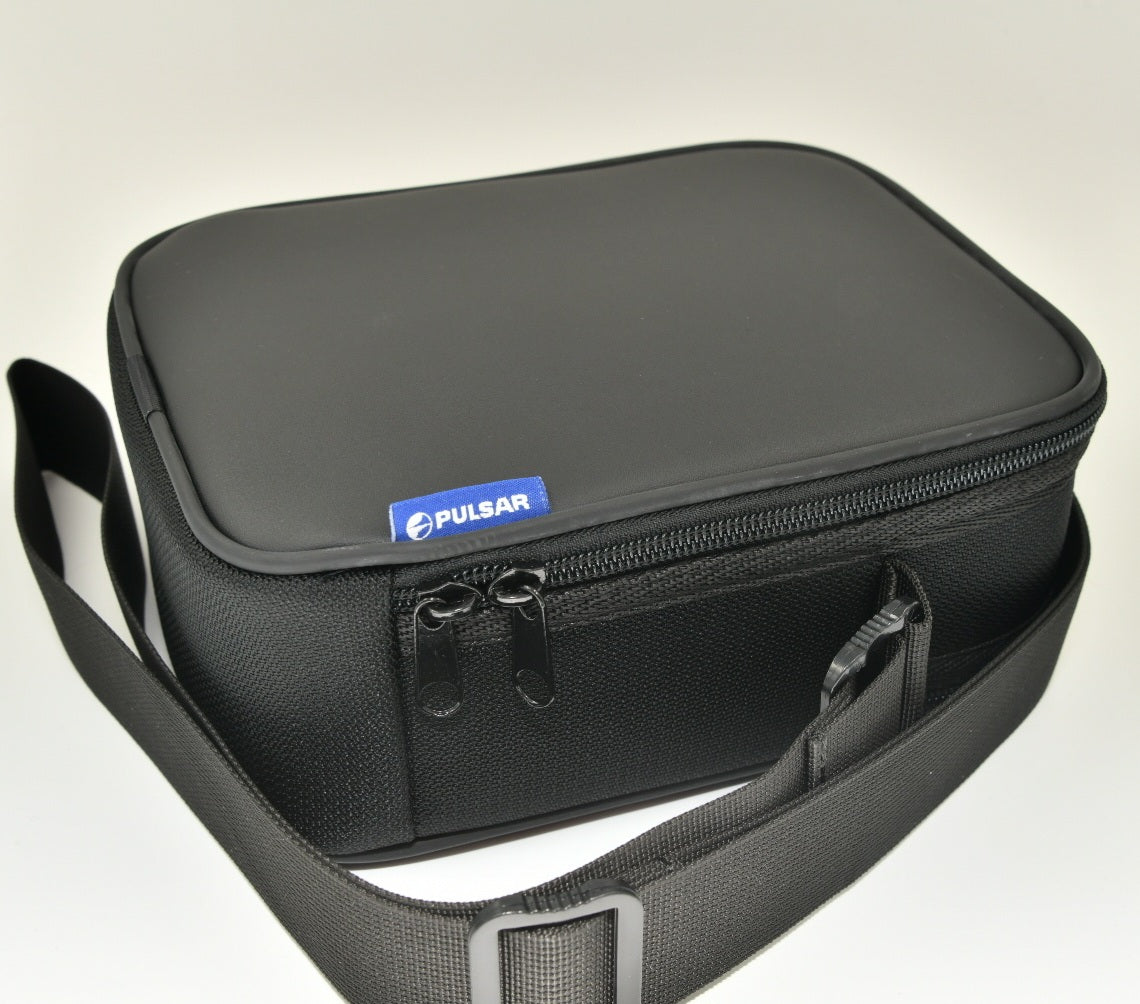

- Padded carrying case
- USB charging cable
- Cleaning cloth
- User manual
- Warranty card
