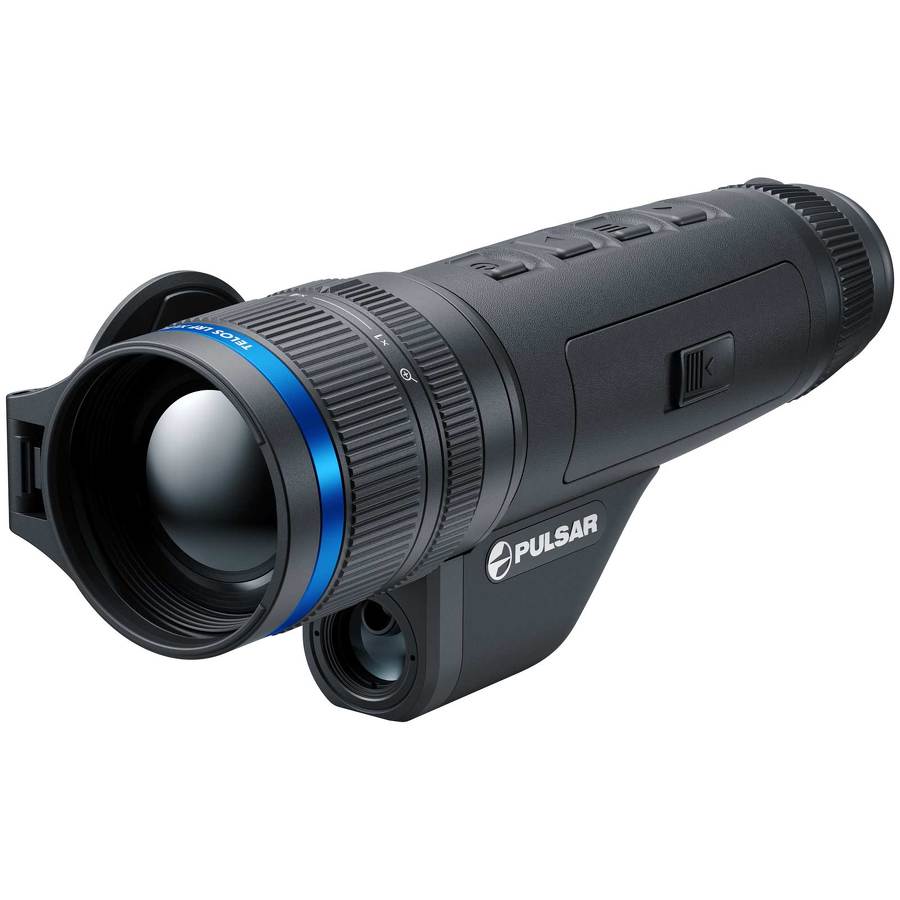

Telos LRF XL50 Thermal Imaging Monocular PULSAR with Integrated Rangefinder
The Telos LRF XL50 thermal imaging monocular from Pulsar is a revolutionary tool designed to deliver outstanding performance for hunters, nature observers, and security professionals. Thanks to its integrated laser rangefinder and advanced thermal vision technology, this device is perfect for the most demanding conditions.
This is an upgradeable device
The Telos LRF XL50 is designed to evolve over time. It allows for technical upgrades, offering the possibility to replace components such as the sensor, optics, and display. You can also add features like a laser rangefinder to always have access to the most advanced technology.
High-sensitivity thermal sensor
Equipped with an HD 1024x768 pixel thermal sensor with a thermal sensitivity (NETD) of less than 40 mK, the Telos LRF XL50 captures even the slightest temperature differences, even in challenging weather conditions such as rain, fog, or extreme cold.
Pulsar Image Boost Technology
The Pulsar Image Boost technology optimizes images to deliver superior levels of detail and contrast. Advanced image processing algorithms ensure exceptional clarity, even when observing complex scenes or low thermal contrasts.
Objective lens zoom ring control
The zoom and focus rings are ergonomically positioned, allowing easy and precise adjustment with one hand. This configuration is reminiscent of professional camera lenses and ensures intuitive, rapid handling.
Precise laser up to 1000 m
The integrated laser rangefinder offers a range of up to 1000 meters with a measurement accuracy of ± 1 meter, enabling quick and precise distance assessment to the target.
Designed for the harshest conditions
The Telos LRF XL50 is built to withstand the most rugged environments. Operating efficiently in a temperature range from -25 to +40 °C, it is also waterproof to the IPX7 standard, ensuring total protection against water and harsh weather.
Replaceable battery with fast charging
The Telos LRF XL50 uses a removable LPS 7i Li-ion battery providing over 7 hours of runtime. The battery can be recharged via a USB Type-C port with Power Delivery technology for fast charging, and it also supports wireless charging.
Ergonomic non-slip structure
The rubber-coated structure of the Telos LRF XL50 ensures a firm and secure grip, even in the rain or dusty conditions. This coating is durable, easy to clean, and effectively protects the device against drops.
Suitable for both left- and right-handed users
The symmetrical layout of the controls allows for comfortable use of the Telos LRF XL50 by both left- and right-handed users. The strap can be attached to either side of the device for maximum flexibility.
Ergonomic carrying case
The carrying case included with the Telos LRF XL50 is designed to provide maximum comfort and functionality. It allows for balanced weight distribution of the device, relieving the shoulders and back while ensuring complete freedom of movement.
Customizable user interface
The Telos LRF XL50 features an advanced user interface that you can customize to your preferences. You can set the order of menu items and adjust brightness and contrast settings for an optimal viewing experience.
User mode
Save your preferred contrast and brightness settings with the user mode. These parameters are stored, allowing you to instantly regain optimal image quality the next time you use the device.
More features
The Telos LRF XL50 is equipped with a powerful F50/1.0 objective lens paired with a high-quality sensor, offering a detection range up to 2300 meters. The device also integrates a video recorder with 64 GB of internal memory, as well as Wi-Fi connectivity for interaction with the Stream Vision 2 app.
Technical specifications
| Sensor | HD 1024x768 pixels @ 12 µm (NETD <40 mK) |
|---|---|
| Objective lens | F50 / 1.0 |
| Zoom | 2.5 – 20 (x8 zoom) |
| Field of view | 14x10.5 degrees / 24.6x18.5 m at 1000 m |
| Detection distance | 2300 m |
| Sensor type | Uncooled |
| Resolution | 1024 x 768 pixels |
| Pixel pitch | 12 µm |
| Refresh rate | 50 Hz |
| Eye relief | 14 mm |
| Screen type | AMOLED |
| Screen resolution | 1024 x 768 pixels |
| Laser equipment safety class | IEC 60825-1: 2014 |
| IR wavelength | 905 nm |
| Max. measuring range | 1000 m |
| Measurement accuracy | ± 1 m |
| Photo resolution | 1024 x 768 pixels |
| Video resolution | 1024 x 768 pixels |
| Photo format | .jpg |
| Video format | .mp4 |
| Memory capacity | 64 GB |
| Wireless protocol | Wi-Fi |
| Wi-Fi standard | IEEE 802.11 b/g/n/ac (WPA) |
| Wi-Fi frequency | 2.4 / 5 GHz |
| Waterproof | Yes - IPX7 |
| Operating temperature | -25° C to +40 °C |
| Tripod connection | Yes - 1/4" |
| App control | Yes - Stream Vision 2 |
| Output voltage | 3.0 - 4.2 |
| Battery type | LPS 7i Li-Ion Battery Pack |
| Battery capacity | 6400 mAh |
| Battery life | 7 hours |
| Power supply | 5 V, 9 V (USB Type-C Power Delivery) |
| Body material | Reinforced rubber |
| Dimensions | 243 x 72 x 90 mm |
| Weight | 0.73 kg |
Box contents
- 1 TELOS LRF XL50 thermal imaging monocular
- 1 LPS 7i battery with protective cover
- 1 Spare battery cover
- 1 AC adapter
- 1 USB Type-C cable with USB Type-A adapter
- 1 Carrying case
- 1 Neck strap
- 1 Quick start guide
- 1 Optical cleaning cloth
- 1 Warranty certificate
